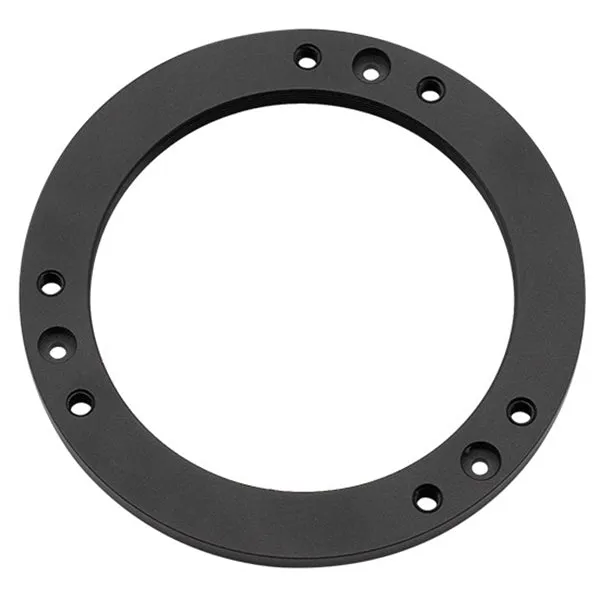

The 5 mm M68 sensor tilt adapter was independently developed by ZWO and specially made to match with the full-frame cooled ZWO ASI6200MM-Pro and ASI6200MC-Pro cameras.

Use it with a 2-inch EFW and M68 OAG

You are encouraged to use it with a ZWO 2-inch EFW and ZWO M68 OAG by mounting them on the M68-thread telescope side.

This new M68 sensor tilt adapter can be used to connect with the M68 thread telescope side. (The original M54 sensor tilt adapter for the ASI6200 cameras could only be used to connect with a M42/M48-thread telescope side.)

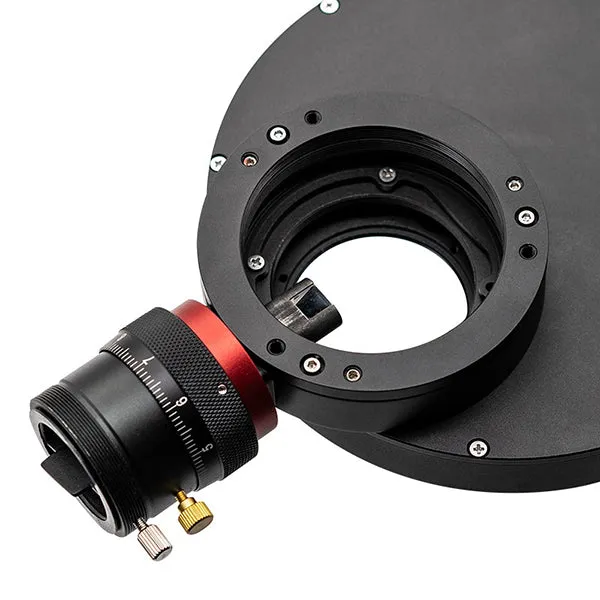

Image Note: Off-axis-guider and Electronic filter wheel are shown for use demonstration only, but may also be purchased from OPT in these links:     OAG      EFW

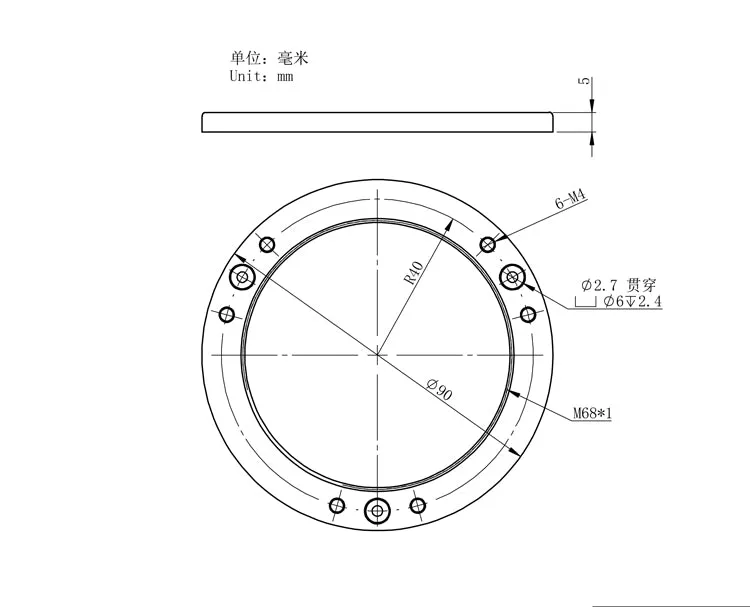

Back Focus Solution and Mechanical Drawing

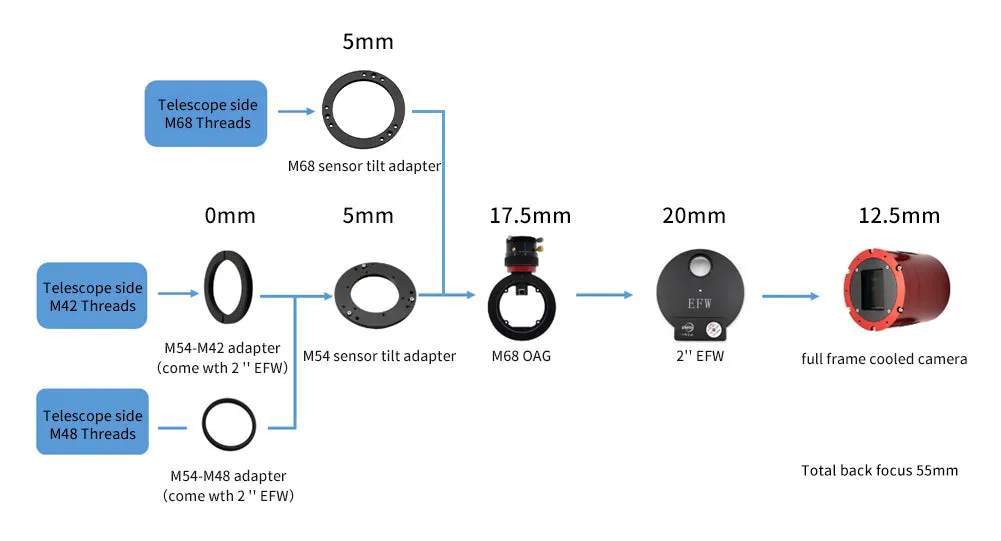

See "The best solution of 55 mm back focus length" and the "Mechanical Drawing" in the Gallery Tab, click on the thumbnails to open the pictures. Then hold[Shift] while scrolling up or down with the center mouse roller to enlarge.
