Product Details
＋

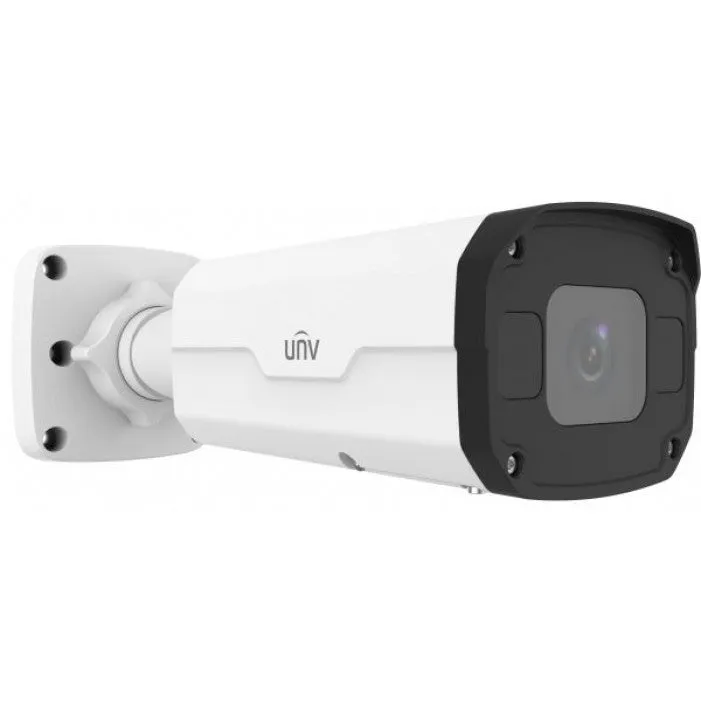

The IPC2325SB-DZK-I0 from Uniview is a 5 megapixel HD lighthunter IR VF bullet network camera with 2.7 -13.5mm lens.
Features
- High quality image with 5MP, 1/2.7"CMOS sensor
- 5MP (2880*1620)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- LightHunter technology ensures ultra-high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out
- Smart IR, up to 50m (164ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP67 protection
- Support PoE power supply
| Product SKU | IPC2325SB-DZK-I0 |
|---|---|
| Brand | Uniview |
| Condition | New |
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| IR Distance | 50m/164ft |
| S/N Ratio | >56 dB |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Privacy Zone | Up to 4 areas |
| Power Consumption | Max 8.0 W |
| OSD Menu | Up to 8 OSDs |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | ≤95% RH (non-condensing) |
| Minimum Scene Illumination | Colour: 0.002Lux (F1.2, AGC ON)0Lux with IR on |
| Lens Size | 2.7-13.5mm |
| Camera Signal | Network IP |
| Lens Type | Varifocal |
| Rotation Angle | 0° ~ 360° |
| Angle of View | (H): 106.25°~ 30.42°, (V): 56.36°~ 17.22°, (O): 110.34°~34.18° |
| Digital Noise Reduction | 2D/3D DNR |
| Weatherproof | IP67 |
| IR Wavelength | 850nm |
| Motion Detection Tracking | Up to 4 areas |
| Back Light Compensation | Supported |
| Automatic White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Infrared Distance | 101 Feet |
| Resolution | 5 Megapixel |
| Voltage | 12vDC, PoE |
| Compression Method | Ultra 265, H.264, M-JPEG, H.265 |
| Connection Type | Wired |
| Image Device | 1/2.7",5.0 megapixel, progressive scan, CMOS |
| Electronic Shutter | Auto/Manual, 1 ~ 1/100000s |
| Dimensions (W x H) | 245 × 86 × 72mm (9.6” × 3.4” × 2.8”) |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Audio | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
