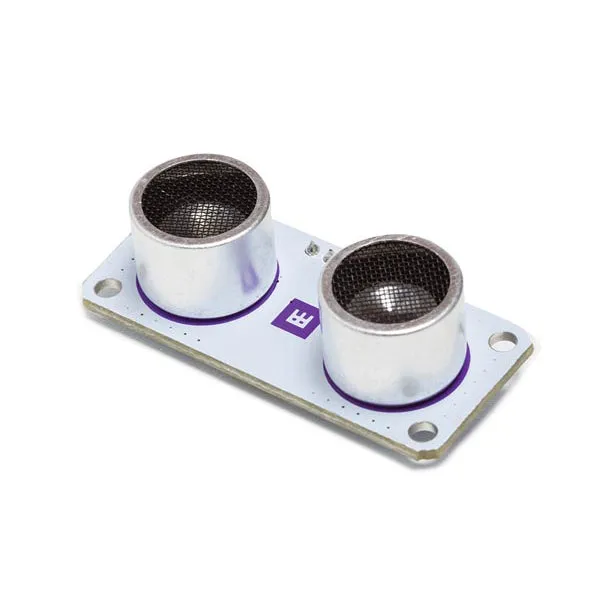

The ultrasonic distance sensor enables you to create a project that can measure distances up to 5.5 m.

Project tip: add this sensor to any robot project in order for the robot to avoid obstacles when moving.

Specifications

• voltage: 3.3 to 5 VDC
• sound frequency: 40 KHz
• measurement resolution: 0.3 cm / 0.01"
• measurement angle: 15 °
• supply current: 50 to 100 mA
• trigger pin format: 10 uS pulse
• connector: 5 pin male
• detection distance: 3-550 cm / 1.18-216.55"
• dimensions: 49 x 22 x 19 mm / 1.93 x 0.87 x 0.75"
• working temperature: -10°C to 60°C

Downloads
