Features:

• Bandwidth: 300 MHz
• Analog channels: 2
• Real time sample rates on all channels: 2.5 GS/s
• Record length on all channles: 10k
• Continuous waveform capture rate: 3,600 wfms/s
• Suite of advanced triggers
• Front-panel USB host port for easy storage and transfer of measurement data
• 25 automatic measurements
• FFT standard
• Multiple language user interface
• WaveAlert automatic waveform anomaly detection
• TekProbe interface supports active, differential, and current probes for automatic scaling and units
• Lightweight design (only 7 lb./3.2 kg) for easy transport
• Optional internal battery operation provides up to three hours without line power
• Application modules available for advanced analysis, limit testing, telecommunications mask testing, and extended video

Applications:

• Digital design and debug
• Video installation and service
• Power supply design
• Education and training
• Telecommunications mask testing
• Manufacturing test
• General bench testing

Specifications:

• 300 MHz
• 2 Channel
• 2.5 GS/s
• 10 kPts

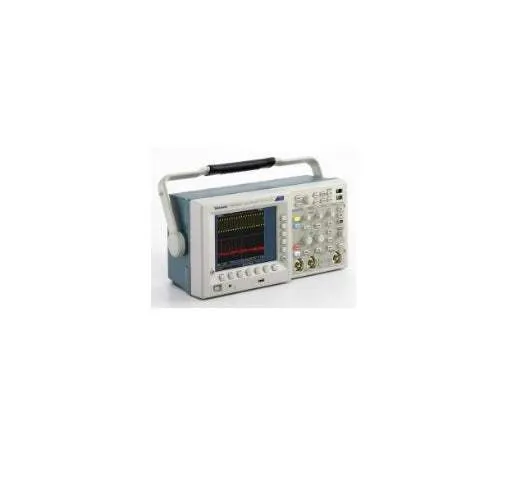

The Tektronix TDS3032C 300 MHz, 2-Channel, 2.5 GS/s Digital Phosphor Oscilloscope packs the power of a DPO in a compact design that is only 5.9 in. (149 mm) deep, freeing up valuable benchtop space. And when you need to move your oscilloscope to another lab, its portable 7 lb. (3.2 kg) design makes for easy transport.
