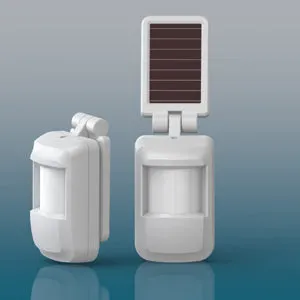

Solar-Powered Wireless PIR Detector

The Solar-Powered Wireless PIR Detector has a solar energy charging design which means no need of external power line (design life is 10 years). The standby current is as small as μA stage, and it has a strong anti-interference capability for disturbances of electromagnetic, strong light, small pets, and low false alarm rate. The sensitivity of sensor is adjustable, automatic temperature compensation. Its streamlined design makes it flexible, allowing it to be conveniently installed on the wall, ceiling, etc. The detector works with FM FH signal so there is no need of external signal line. It has the function of fault check, and it reports the fault to the host.

PRODUCT SPECS

• Solar panels: 5V
• Emergency power supply: one 3.6V lithium battery
• Alarm current: ≤60mA
• Standby current: ≤40μA
• Detecting angle: 100°
• Detecting distance:≥8m
• Wireless transmitting distance: ≥700m
• Transmitting time: 5s
• Work environment temperature range: -10～ 55℃
• Wireless transmitting frequency: 433Mhz FH
• Environment temperature range: -25～ 65℃
• FM FH signal
