Product Details
＋

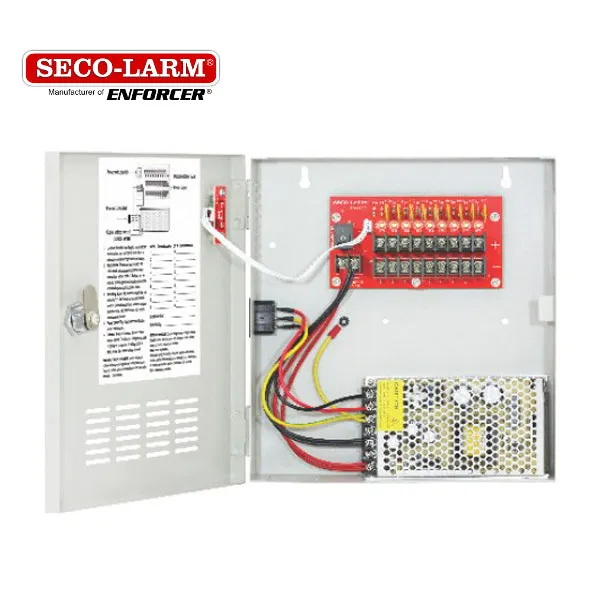

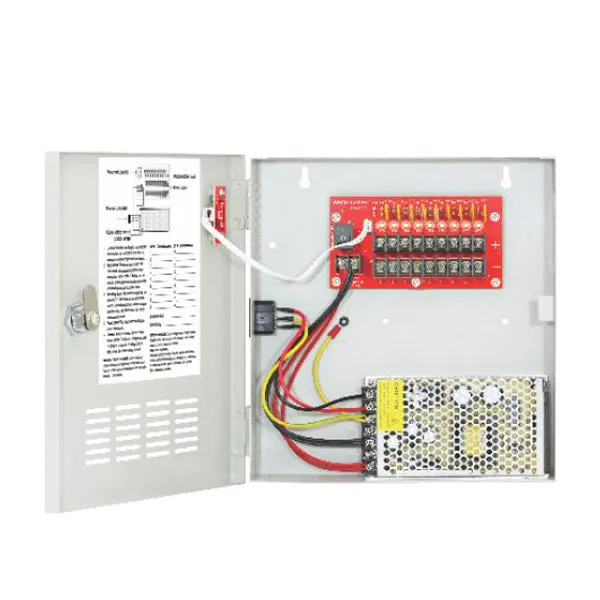

ENFORCER 12VDC Switching CCTV Power Supply is an efficient solution for powering CCTV installations. Each unit distributes power to multiple CCTV devices and provides short circuit and overheat protection.
- 100~220 VAC Input*
- Adjustable output to reduce voltage drop
- Each output individually protected by a PTC fuse
- PTC fuses rated [email protected]~13.8 VDC
- Power output ON/OFF switch
- Individual output status LEDs
- Convenient AC input and DC output status LEDs on cover
- Heavy-duty steel case with cover
- Built-in short circuit and overheat protection
- 3.3ft (1m) Power cord included
Specifications
| Outputs | 9 |
| Total supply current | 10A |
| Max. current per output | 1.6A |
| Output fuse | PTC |
| Output voltage | 11.0~13.8 VDC (adjustable by trimpot, ±10% (47~63 Hz) |
| Input voltage | 100~220 VAC ±10% (47~63 Hz) |
| LED indicators | Cover -Green: AC Input, Red: DC Output PDM -Red: DC Output |
| Operating humidity | 90% (non-condensing) |
| Operating temperature | 32°~104° F (0°~40° C) |
| Dimensions | 9-7/6"x10-1/4"x2-3/8" (240x260x60 mm) |
| Weight | 4-lb 7-oz (2.01kg) |
