Product Details

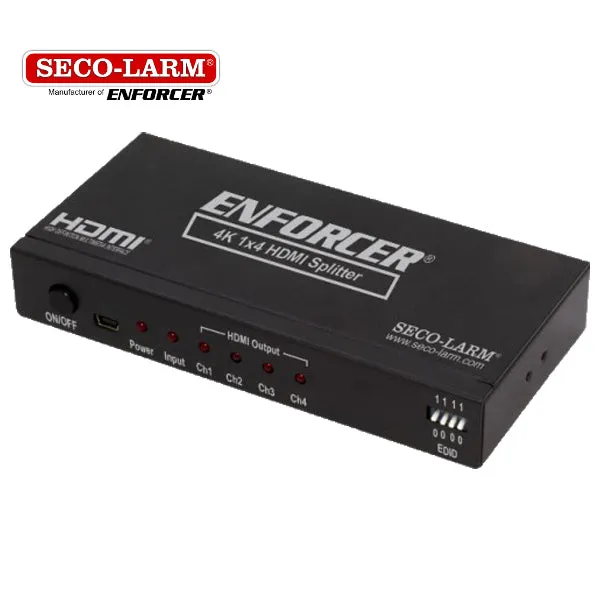

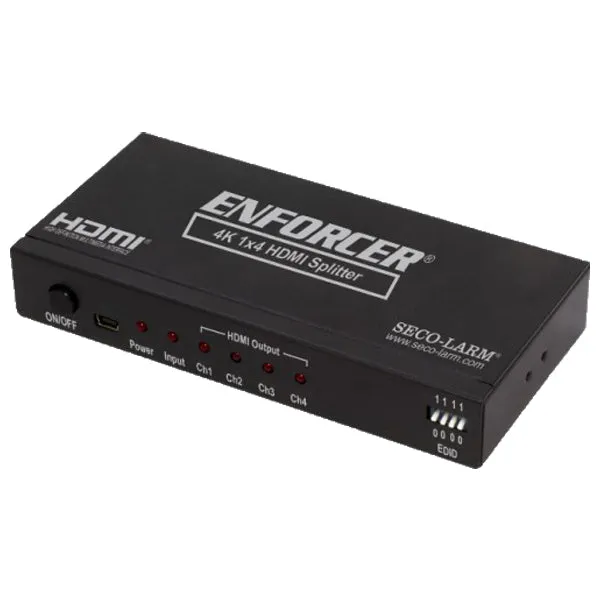

ENFORCER HDMI Splitters allow for one HDMI source to simultaneously transmit to up to four different monitors. The splitters work with most HDMI devices, delivering the very best in digital audio and video signals with HD resolutions of up to 4K. LED Indicators clearly display power status as well as which outputs are active. Supports up to 1080p and 3D video.

  • Transmit an HDMI source to up to two different HDMI displays
  • Supports up to 4K resolution and 3D video
  • Individual status LEDs for each HDMI output
  • EDID Management settings
  • One (1) 5VDC Power supply included



    Specifications

    Type 4K HDMI Splitter
    Input Video Signal 3.3V
    Input DDC Signal 5Vp-p (TLL)
    Maximum Single Link Range 4K*2K@30hz
    Deep Color 48bit
    Video Formats Supported High-speed HDMI, HDCP 1.4
    Audio Formats Supported LPCM, Dolby-AC3, DTS7.1, DSD
    Output Video HDMI
    Resolutions Supported 4K/1080p/1080i/720p/576p/576i/480p/480i
    Video Amplifier Bandwidth 10.2Gbps
    Video Input Connector 1x HDMI® Type A 19-pin female
    Max. Input Cable Length 24AWG: 50’ (15m); 26AWG: 30’ (10m); 28AWG: 16’ (5m)
    Video Output Connector 4x HDMI® Type A 19-pin female
    Max. Output Cable Length 24AWG: 50’ (15m); 26AWG: 32’ (10m); 28AWG: 16’ (5m)
    Operating Voltage 5VDC
    Power Supply 1A@5VDC (2.1mm plug)
    ESD Protection ±8kV (air-gap discharge), ±4kV (contact discharge)
    Current Draw 650mA@5VDC
    Operating Temperature 32°~104° F (0°~40° C)
    Operating Humidity 20~90% RH (no condensation)
    Dimensions 2-3/8” x 2-3/4” x 13/16” (60 x 70 x 20 mm)
    Weight 10.5-oz (300g)


    Downloads

    Seco-Larm - SLM-MVD-AH14-01Q - 4K HDMI Splitter - 1 female input to 4 female output
