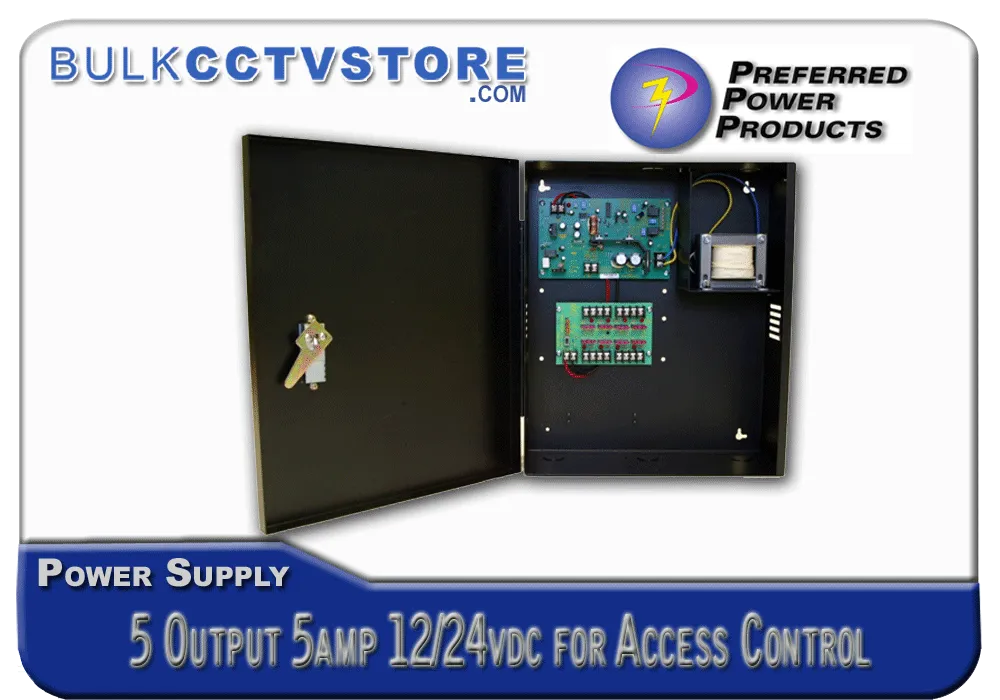

PREFERRED POWER PRODUCTS P3DCAXS-5OL-PC5

The P3DCAXS-5OL is a power supply and charger. It is engineered to convert 115VAC/60Hz input into 12VDC or 24VDC @ 5 AMPS of continuous supply current. The P3DCAXS-5OL is designed for use in an access control system.

Features

• Filtered and electronically regulated outputs.
• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• AC fail and low battery supervision (form “C” contacts).
• AC input and DC output LED indicators.
• Trim pot adjustable voltage.
• Includes battery leads.
• Short circuit and thermal overload protection.
• Power Supply/Charger - P3PS-5-SU

Specifications

• 12VDC or 24VDC selectable output.
• Input 115VAC/60Hz, 1.7 AMP.
• Accommodates up to two (2) 12VDC 7AH batteries (not included).
• 3/4” Knockouts.
• Power supply/charger: P3PS-5-SU.
• Maximum charge current .5 amps.
• 5 amp continuous output current.
• Enclosure dimensions: 98547916606515.5” (H) x 13” (W) x 4.5” (D).

Related Part Numbers

• 5 Amps, 12 or 24 VDC, supervised power supply.
• Four (4) fuse protected outputs.
• Enclosure dimensions: 15.5” (H) x 13” (W) x 4.5” (D).
• 28VAC 175VA Transformer

• 5 Amps, 12 or 24 VDC, supervised power supply.
• Eight (8) fused protected outputs.
• Enclosure dimensions: 15.5” (H) x 13” (W) x 4.5” (D).
• 28VAC 175VA Transformer

• 7 Amps, 12 or 24 VDC, supervised power supply.
• One (1) in, five (5) out, multi-output power distribution module with PTC’s, Fire Alarm Interface.
• Enclosure dimensions: 15.5” (H) x 13” (W) x 4.5” (D).
• 28VAC 175VA Transformer

• 5 Amps, 12 or 24 VDC, supervised power supply.
• Eight (8) programmable fuse protected outputs, Fire Alarm Interface.
• Enclosure dimensions: 15.5” (H) x 13” (W) x 4.5” (D).
• 28VAC 175VA Transformer
