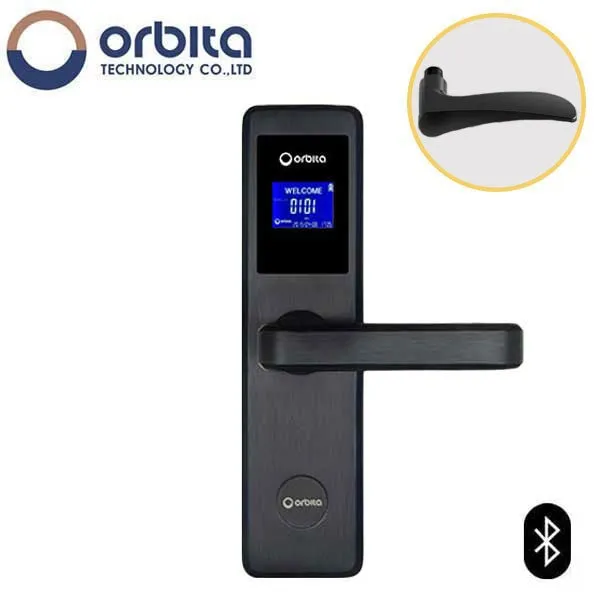

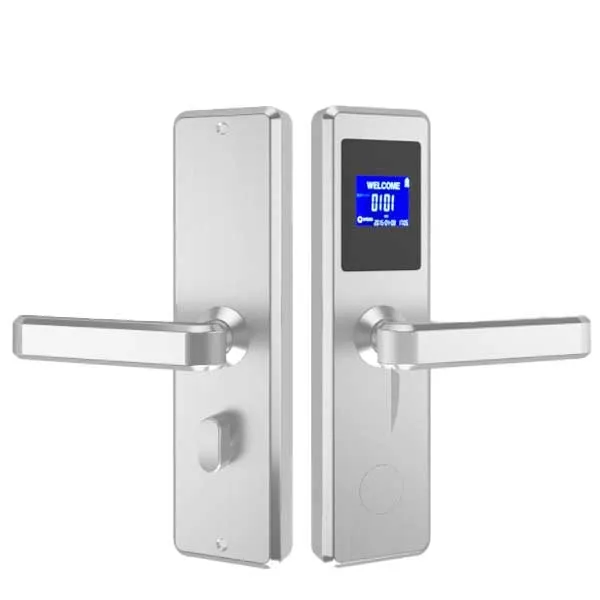

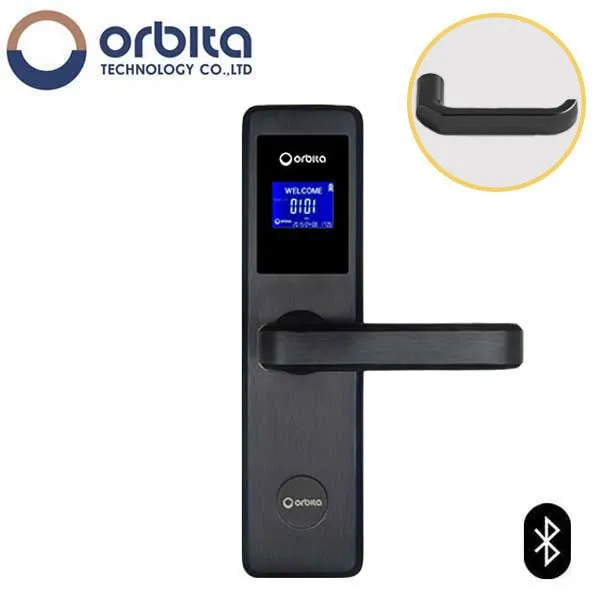

OTC-E4031ASBT

Orbita is a reputable hospitality products manufacturer with ISO certified 46,000 square meters garden factory, established to offer the best quality products with professional and effective service to our customers. All of ORBITA products are CE, FCC, RoHS marked and ORBITA is one of the few brands in this industry that passed 800,000 times BHMA standard circling test.

Features:

- See Orbita MiFare and Bluetooth Software Download Center

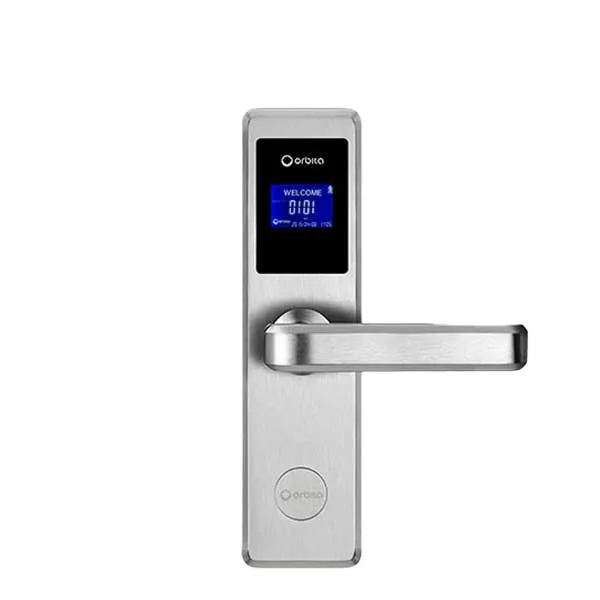

- LCD display show: Welcome, Room Number, Date, Time, Weekday, Battery Status, Wrong Operation Indication

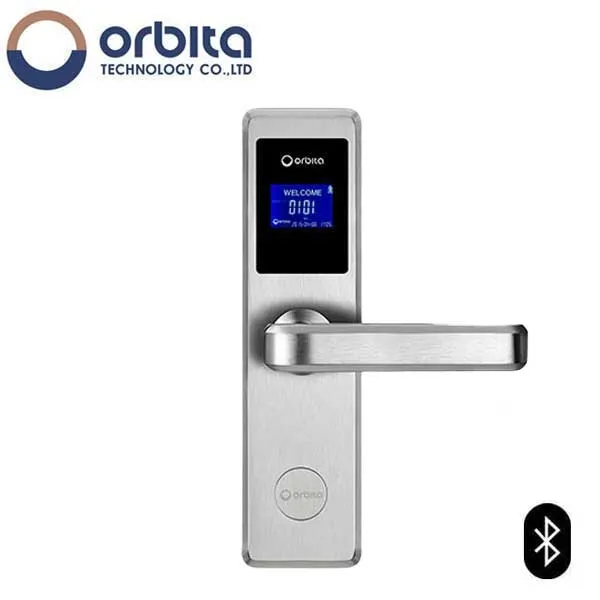

- Unlock with Mobile app
- Interface with most of the PMS system, Fidelio/Opera registered
- CE & FCC Certified
- Stainless steel color lasts more than 10 years
- ANSI Standard mortise
- Inside Deadbolt, Inside handle retracts latches and deadbolt
- Mifare 1K card, compatible with Mifare Energy Saver (card sold separately)
- Lost Guest Card suspension simply by issuing a new guest card with suspending function
- Low battery voltage warning.(Lower then 4.8V).
- Self Error detecting by LED and “Beep”
- Passage Model function available
- Can be integrated with 16 public areas such as Lift/Parking/Swimming Pool/Sauna Room/Tennis Court/Gym...etc

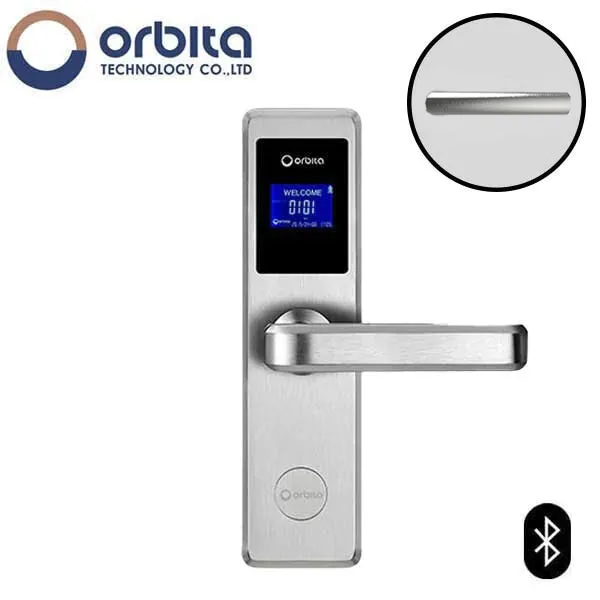

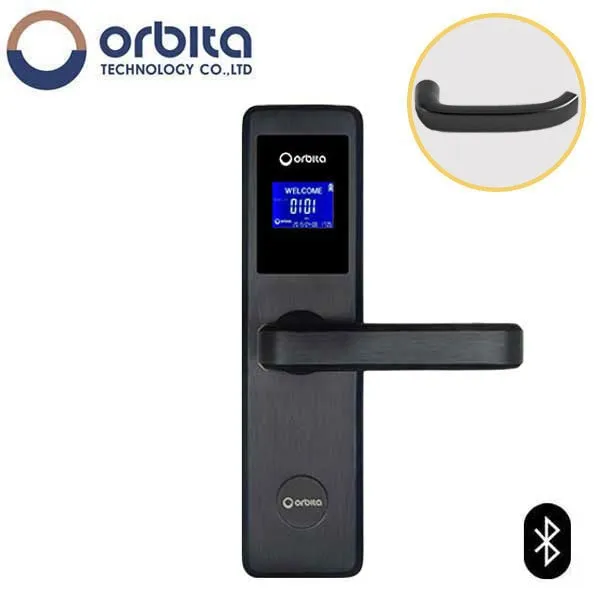

72 - Ares Return	41 - Minerva Return	92 - Mars Return	74 - Neptune Straight No Return	30 - Apollo Straight No Return



Specifications:

Material:	304 Stainless Steel

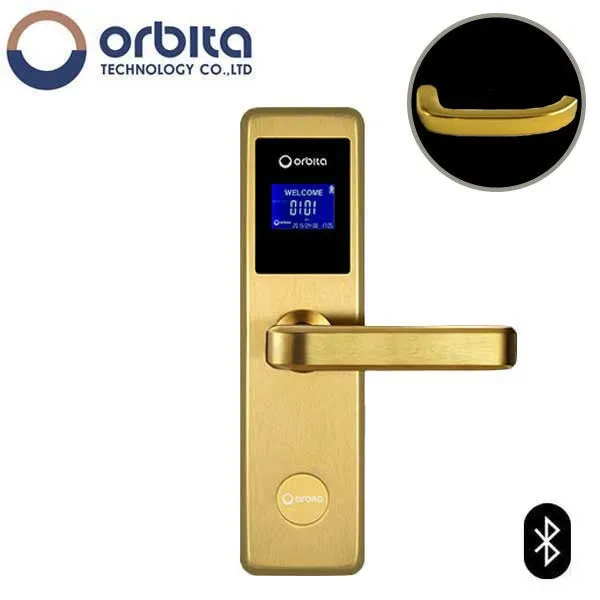

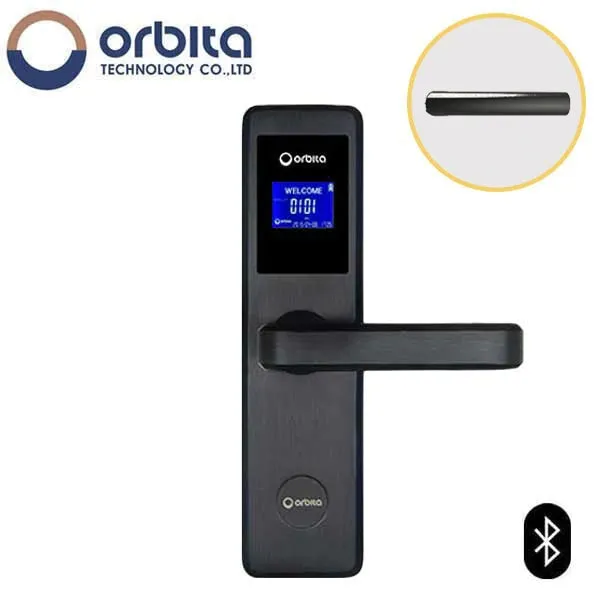

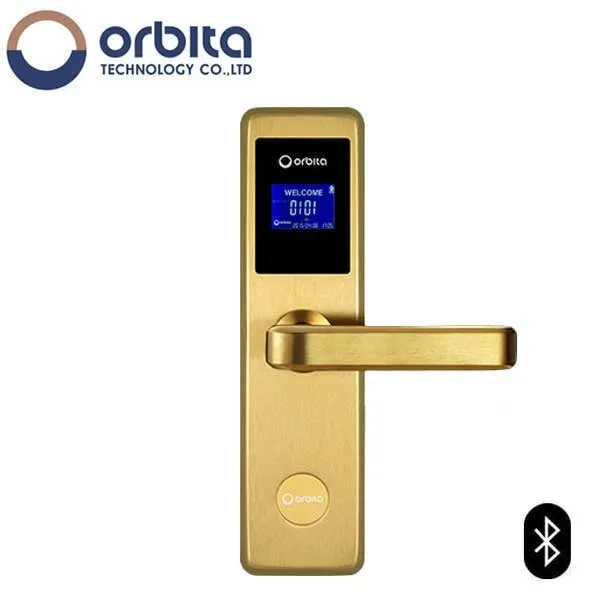

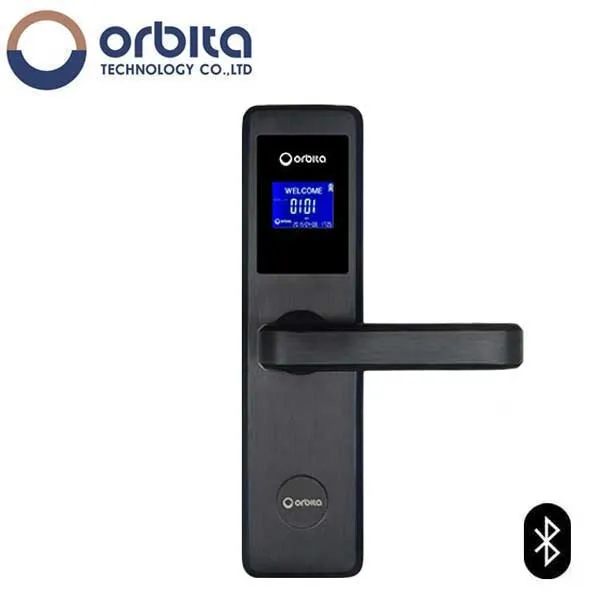

Finish:	Silver Gold Black
Lever Style:	72 - Ares Return 41 - Minerva Return 92 - Mars Return 74 - Neptune - Straight No Return 30 - Apollo - Straight No Return
Working Voltage:	DC6V or 4 AA Alkaline batteries
Low Voltage Alarm:	＜4.8V
Door Thickness:	35-70mm (1.37 - 2.76in)
Operating System:	Most of the PMS system, Fidelio/Opera
Keycard:	Mifare 1 card, compatible with Mifare Energy Saver
Unlocking Record:	1680PCS
Access Levels:	Classified, General Master, Building master, Emergency card, and House Keeping card
Functions:	Passage model
Cycles:	800,000

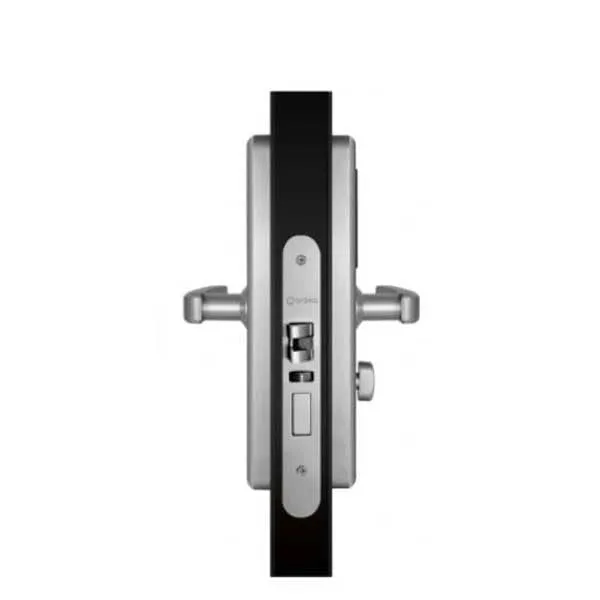

Lock Body:	5 latch ANSI U.S. standard mortise
Working Environment:	-20℃~60℃
Dimensions:	L280mm x W75mm x H22mm (11.02in x 2.95in x 0.87in)
Ingress Protection:	IP54 / Flame Retardant
Certifications:	ISO 9001:2015, CE, FCC, ANSI 156.13 / 156.25 Grade 2
Manufacturer's Warranty:	10 Years



Downloads:

• See Orbita MiFare and Bluetooth Software Download Center
