Description

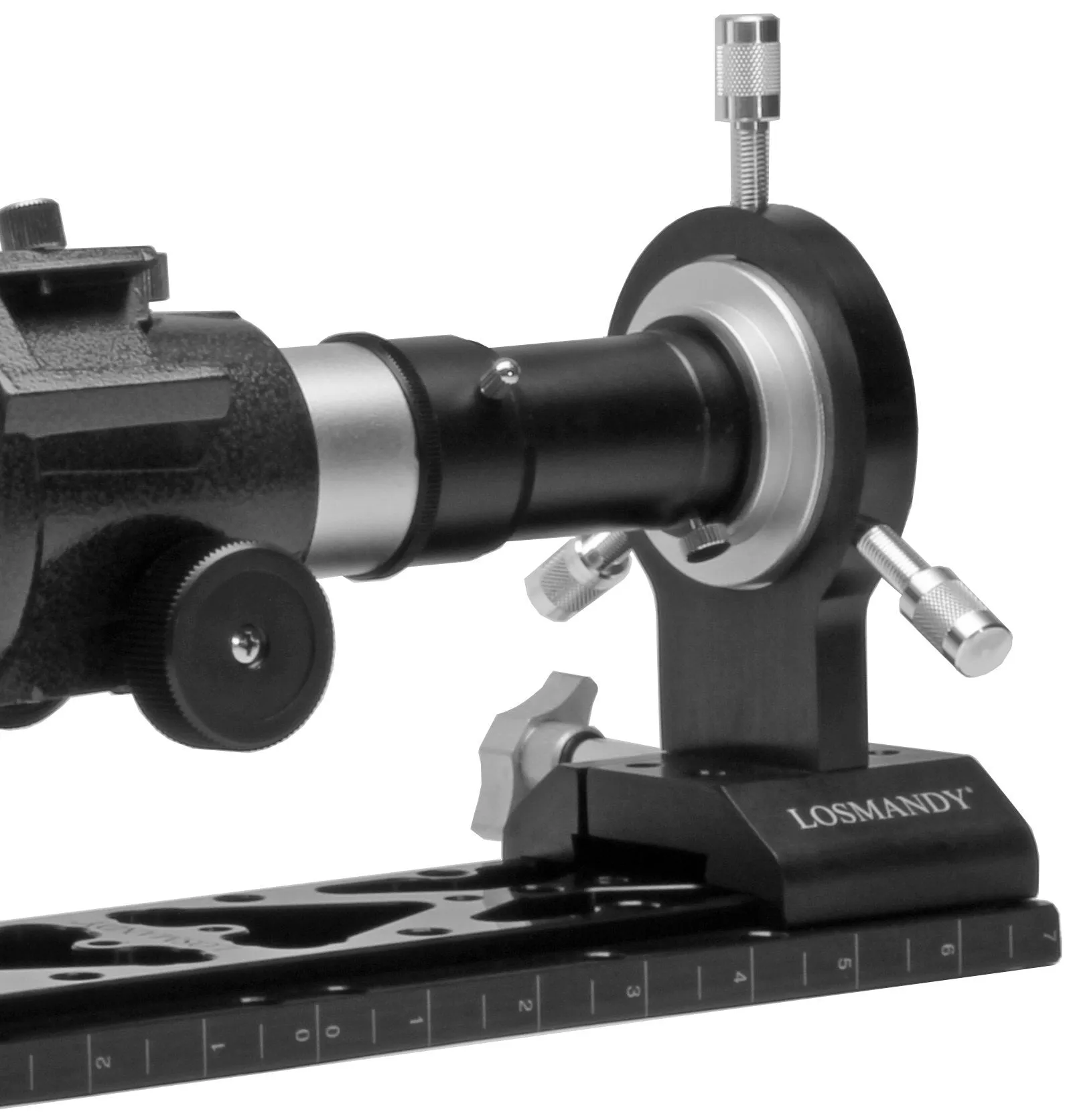

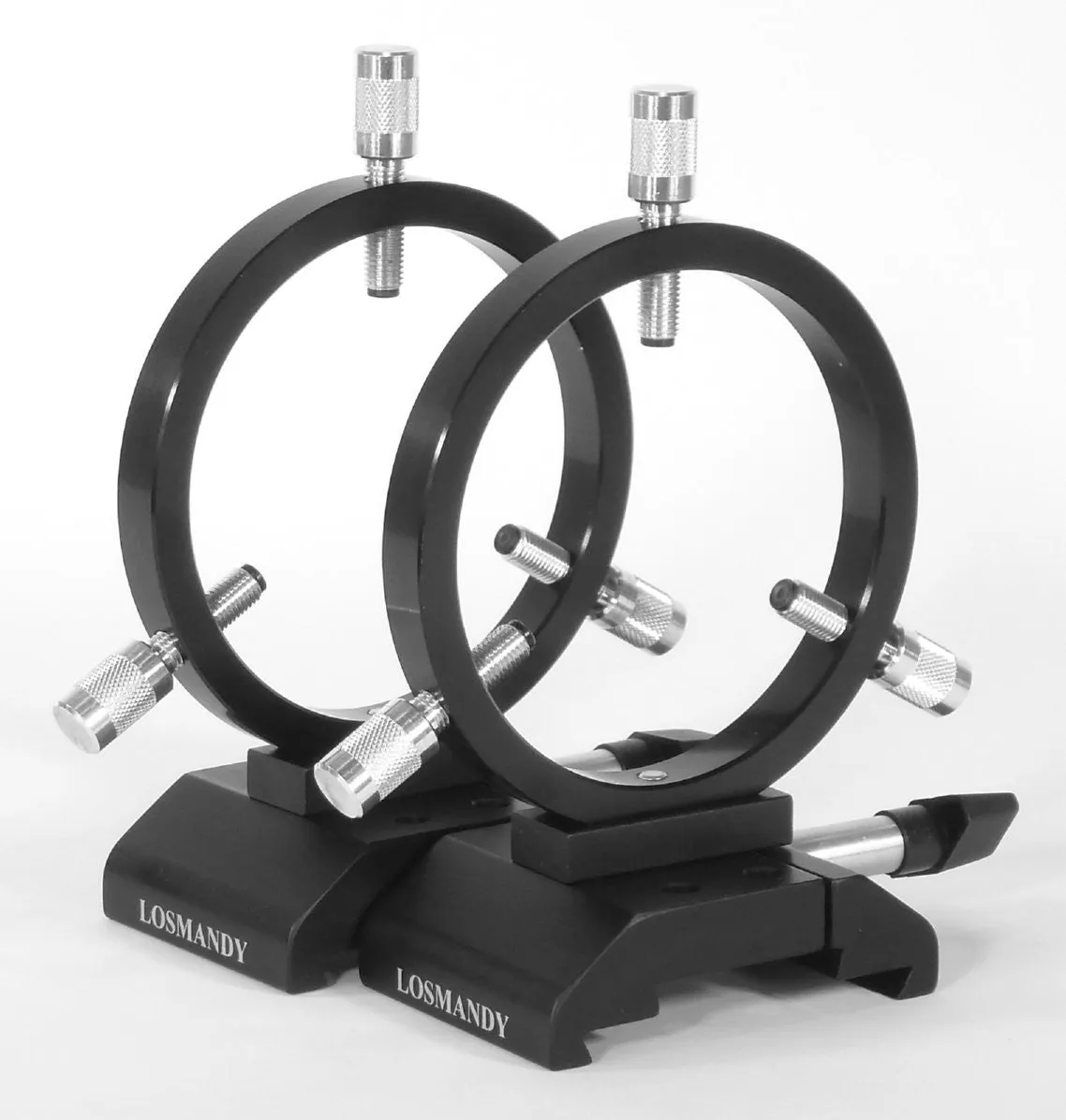

DVR90 Guide Scope Rings:

• Works with both Losmandy D Style and V Series Vixen Style plates.
• 90mm (3.5") I.D. rings with three point adjustment.
• Adjustment screws made of 7075 aluminum (85% stronger then 6061), with machined 1/4" Delrin tips.
• Wt. 25.5 oz. per set
• 2 rings per set
• Dovetail mounted with no tools needed
• I.D. size from 2.48" to 3.78"
• Ht. from top of dovetail plate to center of rings:
• D plates=3.265"
• V plates=3.015"

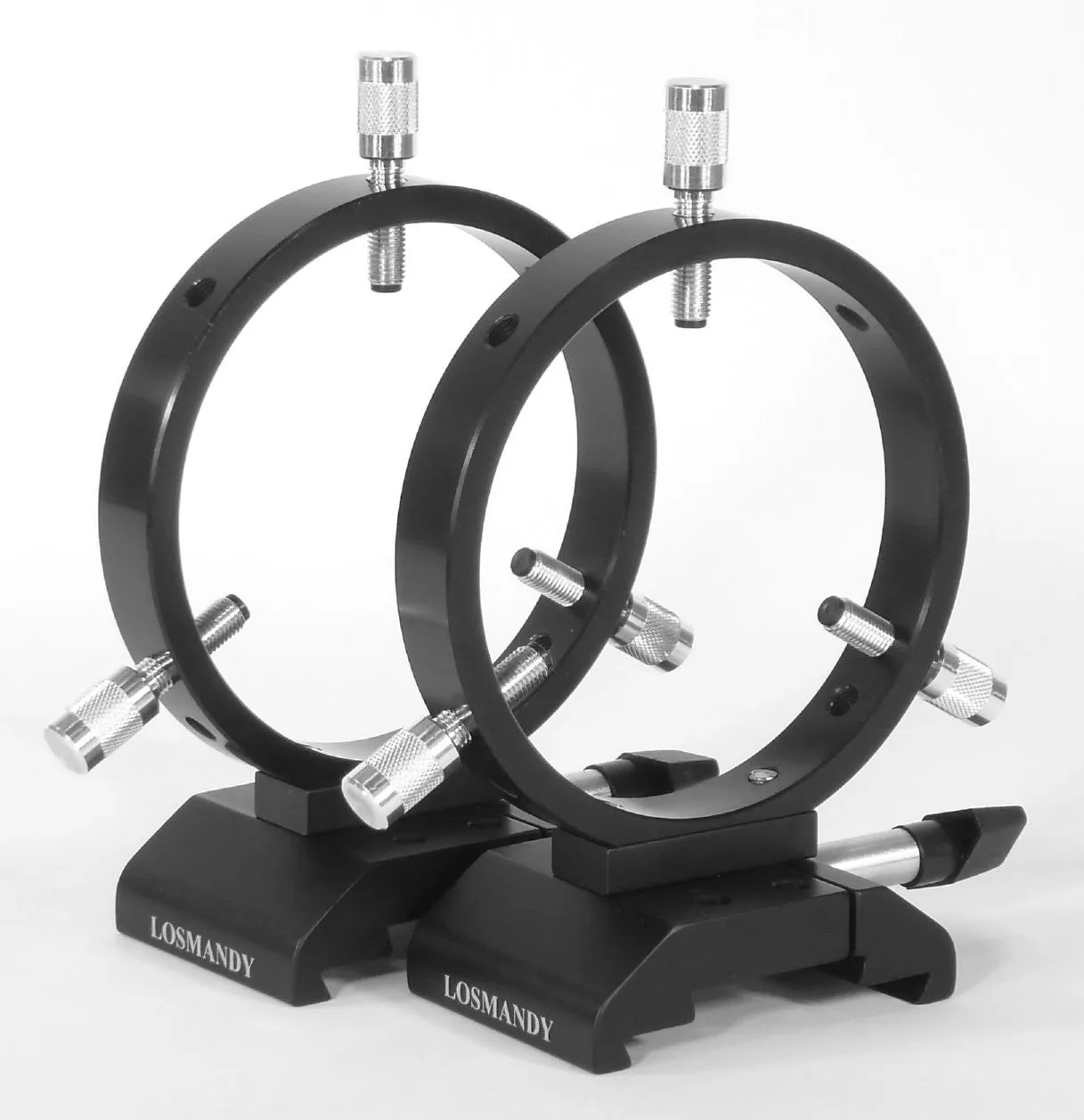

DVR108 Guide Scope Rings:

• Works with both Losmandy D Style and V Series Vixen Style plates.
• 108mm (4.25") I.D. rings with three point adjustment.
• Adjustment screws made of 7075 aluminum (85% stronger then 6061), with machined 1/4" Delrin tips.
• Wt. 29 oz per set
• 2 rings per set
• Dovetail mounted with no tools needed.
• I.D. size from 2.96" to 4.32"
• Ht. from top of dovetail plate to center of rings:
• D plates=3.437"
• V plates=3.187"

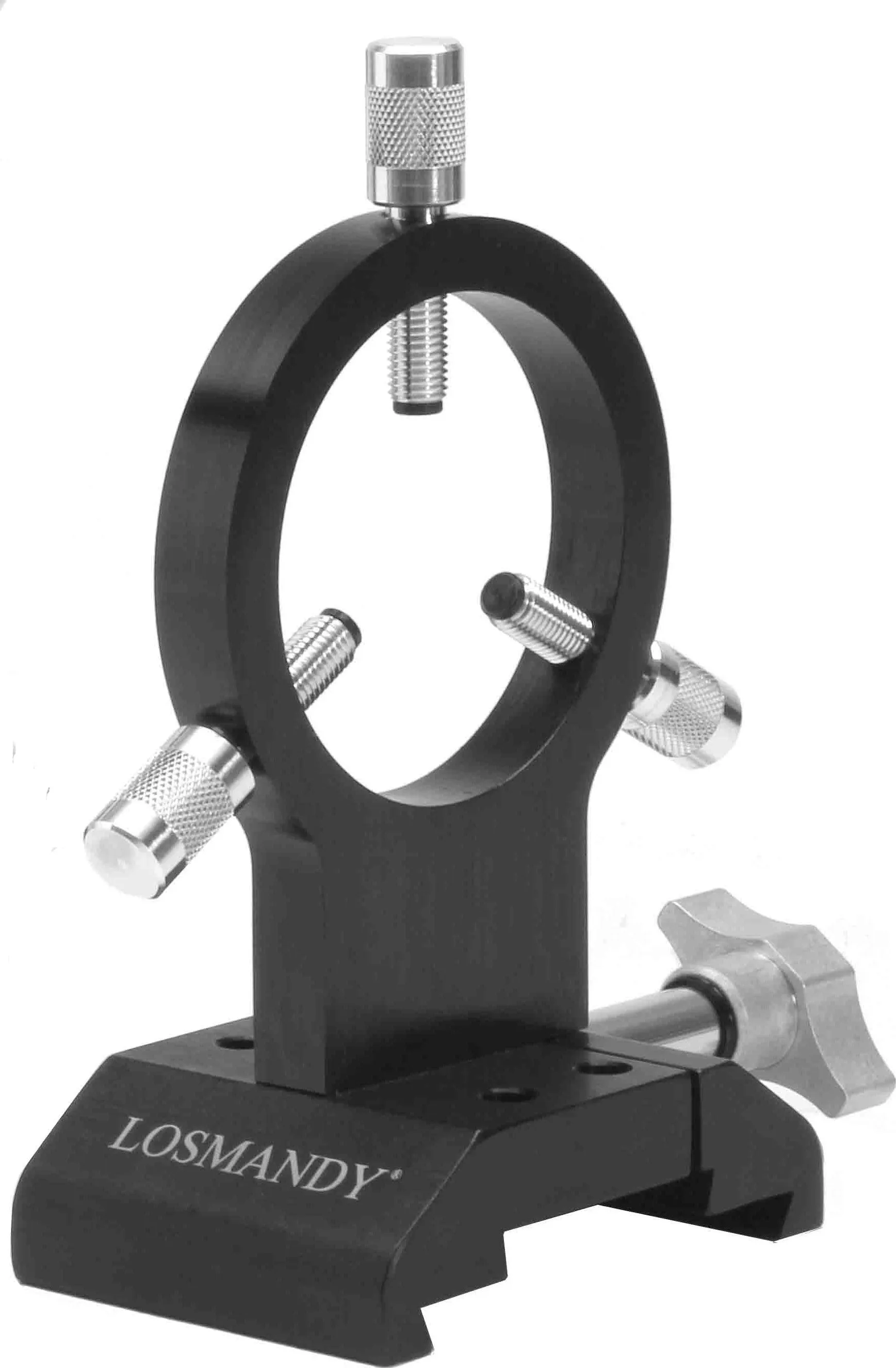

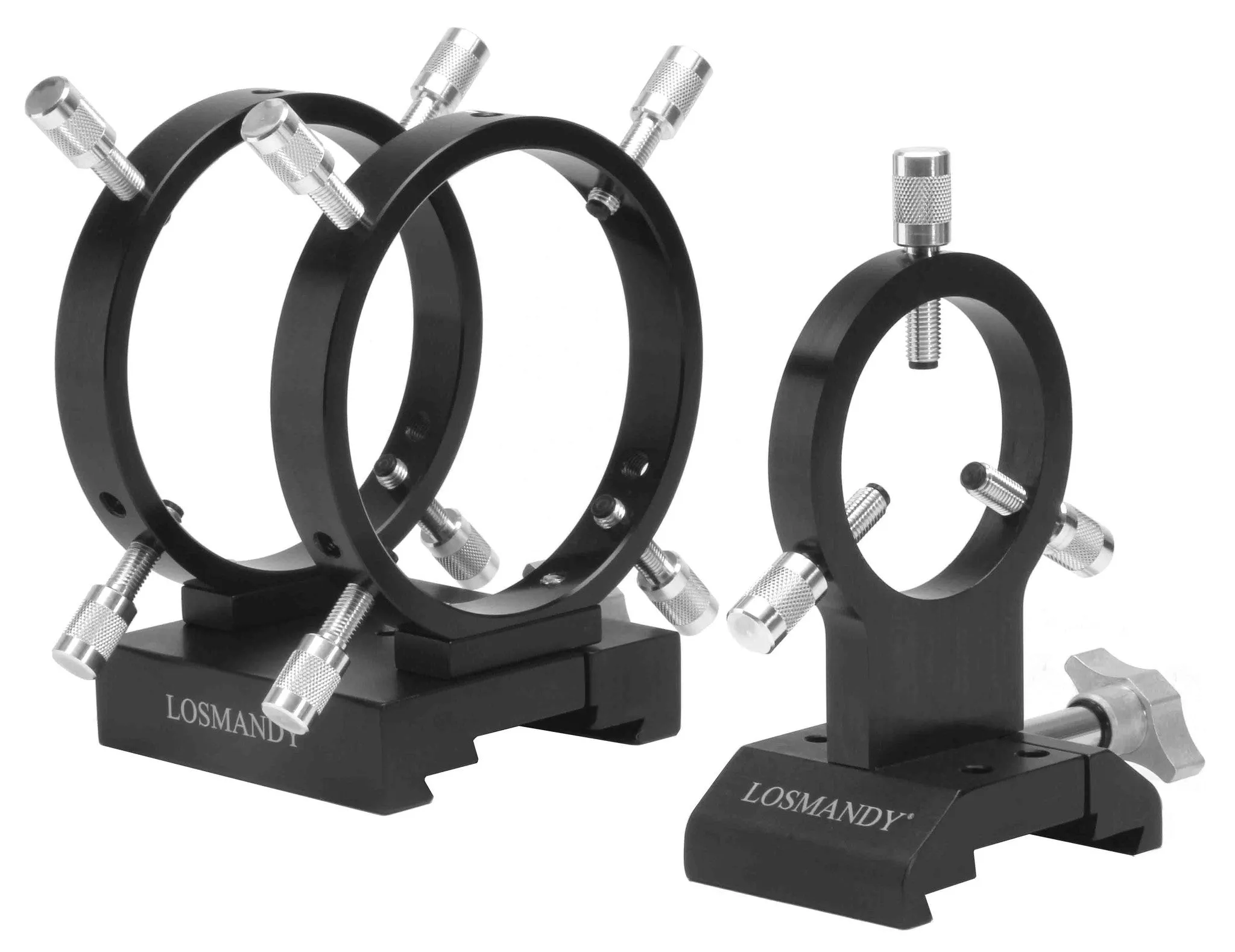

DVR108/66:

• Three Ring AutoGuider Scope Setup.
• Two Rings hold the AutoGuider Scope while the third Ring stabilizes your camera/guider.
• (Dovetail plate and Orion 80mm AutoGuider Scope not included. Shown only as an example of use)
• Works with both D and V series plates.
• Weight 2 lbs 14 oz

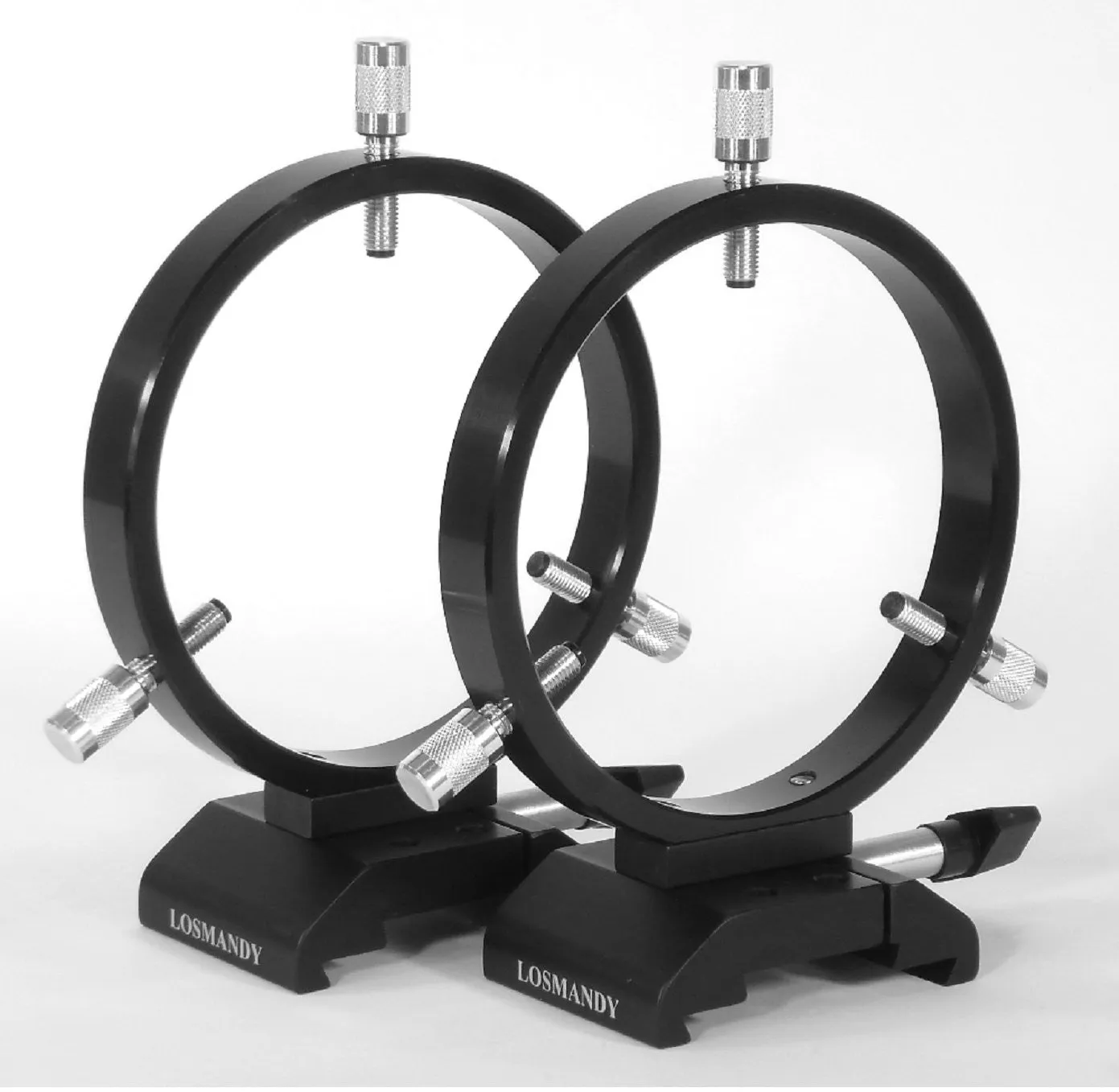

DVR125:

• Works with both Losmandy D Style and V Series Vixen Style plates.
• 125mm (5.0") I.D. rings with three point adjustment.   Adjustment screws made of 7075 aluminum (85% stronger then 6061), with machined 1/4" Delrin tips.
• Wt. 31.5 oz. per set
• 2 rings per set
• Dovetail mounted with no tools needed.
• I.D. size from 3.66" to 5.02"
• Ht. from top of dovetail plate to center of rings:
• D plates=3.837"
• V plates=3.587"

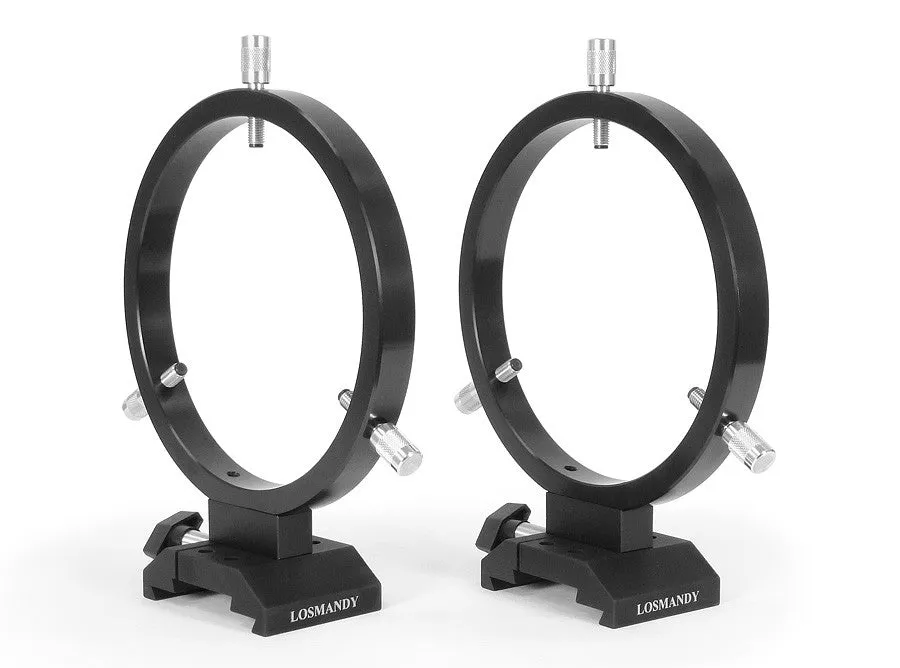

DVR160

• Works with both Losmandy D Style and V series Vixen Style plates.
• 160mm (6.3") I.D. rings with three point adjustment.
• Adjustment screws made of 7075 Aluminum (85% stronger then 6061), with machined 1/4"  Delrin tips.
• Wt. 41.5 oz per set
• 2 rings per set
• Dovetail mounted with no tools needed.
• I.D. size from 5.3" to 6.3"
• Ht. from top of dovetail plate to center of rings:
• D plates=4.65"
• V plates=4.40"
