Product Details
＋

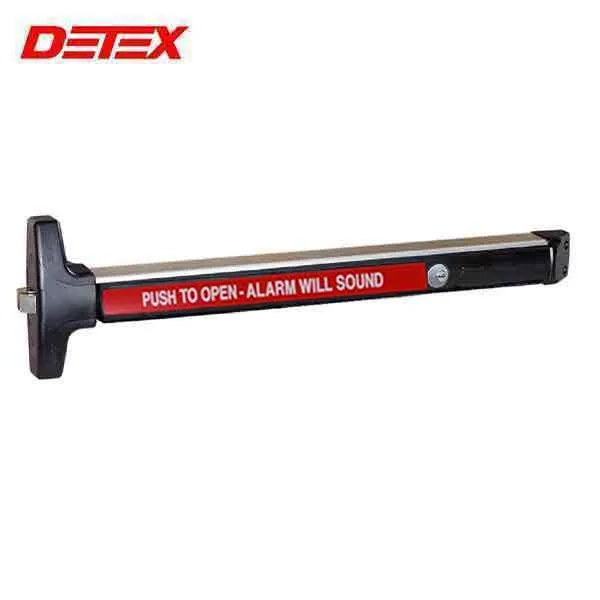

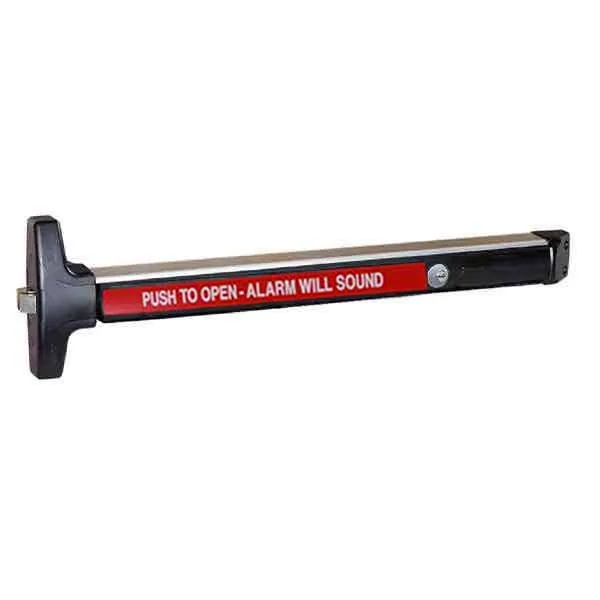

The V40 device is designed for doors and gates requiring a stand alone, battery powered, alarmed, rim exit panic device. The alarm, with approximately 100dB, will sound when someone attempts to exit, alerting management that an unauthorized exit has occurred.
- V40 Rim Device, Wide stile
- Exit Alarm with 9 volt Battery
- Cylinder Dogging
- Satin Aluminum
- Surface Strike
- Fits 48" Door Width
Features
| Push bar Length | 48" |
| Door Thickness: | 1-3/4" - 2-1/4" |
| Door Stile | Fits standard doors with 99 strike |
| Fasteners | Machine and Self-Drilling Screws |
| Dogging | Cylinder Key Dogging |
| Bolt | Stainless steel, 3/4" deadlocking Pullman-type latch bolt |
| Rearm |
Field selectable key rearm or 2 min. auto rearm |
| Alarm Type |
Visual and audible arming indicators |
| Alarm Status |
Armed and disarmed field selectable status indicator |
| Alarm Sound |
100 Decibel Alarm |
| Certifications |
UL Listed Panic Hardware: UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and pairs of 4'x8' with F90KR keyed removable Mullion Meets ADA requirements UBC 97, Standard 7-2 and UL10C for positive pressure ANSI/BHMA certified A156.3 Meets NFPA 80 & 101 for Life Safety Miami-Dade County, Florida NOA 10-0303.02 State of Florida Approval FL9052 EXP. 04/07/15 California State Fire Marshall -4140-0127:105 and 3725-0127:108 |
