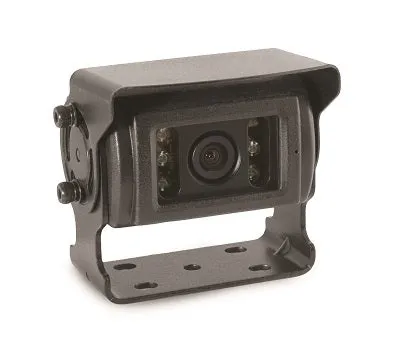

The Brigade Electronics BE-801C Heated Camera is a top-tier color backup camera equipped with a built-in heater, providing excellent picture quality for day and night operations. Ideal for Class 8 truck safety equipment, this camera offers superior low-light performance with infrared LEDs and features a durable, rugged design for demanding conditions. Brigade products are not eligible for returns or exchanges. All sales are final.

Features:

• Viewing angle: (HxVxD) 101° x 7° x 133°
• IP68 rated for dust and water protection
• Size: 3.4” x 3” x 2.8”
• 5 infrared LEDs for enhanced low-light performance
• 16' illumination distance
• Built-in heater for cold weather performance
• Audio capability
• Day/Night sensor
• Mirror/Normal view options
• 1/3" Sony CCD sensor
• TV System: NTSC
• 380 TV lines

Power:

• Power consumption: 4 watts
• Current: 0.33 amps

Durability & Standards:

• Mechanical vibration: 20G
• Mechanical shock: 100G
• Operating temperature: 0°F to 176°F
• CE marked
• EMC approved: e-mark
• HALT tested
• ISO 13766: 2006 certified

Manufacturer Part Number (PN):

• BE-801C
