Product Details

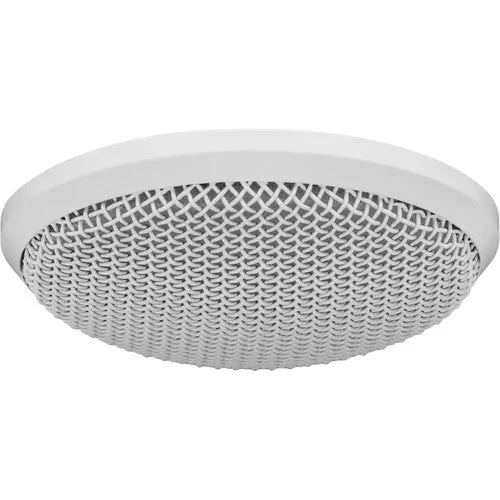

Audix M70WD Overview

The M70WD Flush-Mount Ceiling Microphone from Audix is a steerable, flush-mount condenser microphone designed for the Audix Dante AES67 integrated microphone system (sold separately). It delivers audio and all microphone functions—including on-off contact closure and LED status indicators—through a single Cat 5 to Cat 7 cable with RJ45 connections for video teleconferencing, distance learning, boardrooms, surveillance, hospital and medical procedures, and ambient room miking applications.

The M70WD capsule is housed within a cradle that allows the microphone to be aimed up to an angle of 45°. Other features include: a fully integrated preamp and an extremely high-sensitivity rating with complete immunity from RF interference. In addition, installing the M70WD requires a single 2" hole in the ceiling, with no additional tools needed.

Audix M70WD Specs

Transducer Type Condenser
Frequency Response 60 Hz to 10 kHz
Polar Pattern Cardioid
Output Impedance 150 Ohms
Sensitivity 38 mV/Pa @ 1 kHz
Equivalent Noise Level 22 dB (A-Weighted)
Signal to Noise Ratio 72 dB
Maximum SPL for 0.5% THD ≥130 dB
Dynamic Range 108 dB
Power Requirement Phantom Power: 18 to 52 V
Connector RJ45
Cable Recommended: Cat 5 / 5e / 6 / 6a / 7
Material of Construction Brass, Aluminum and Steel
Dimensions (L x W) 2.5 x 0.5" / 6.4 x 1.3 cm
Weight Not Specified by Manufacturer




Audix M70WD Flush-Mount Ceiling Microphone
  • DefaultTitle

$ 52.48

$ 40.37
