Product Details
＋

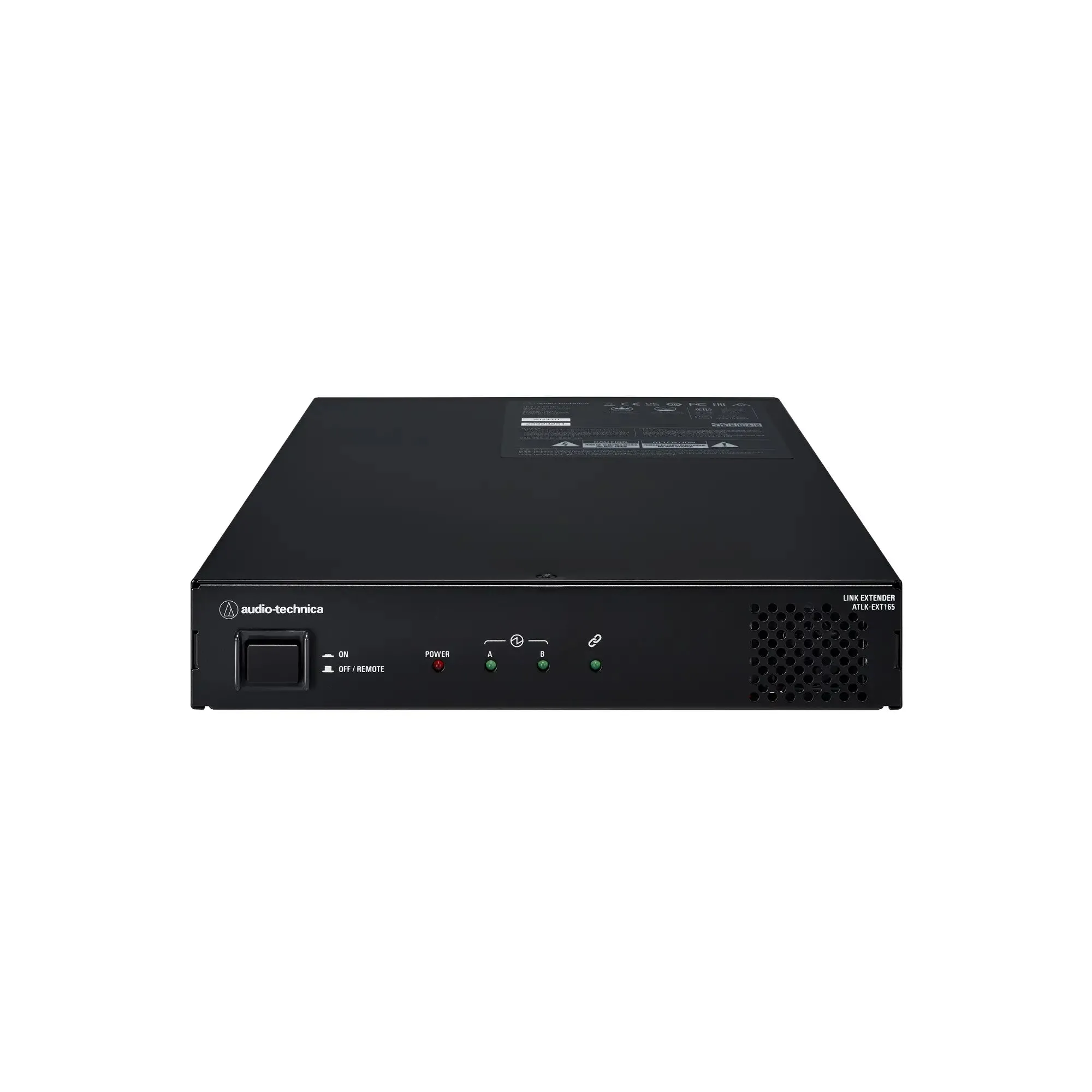

The ATLK-EXT165 has two RJ-45 ports for connection to ATUC-50CU/IRCU/IRCUDAN, ATUC-50DU/IRDU, ATUC-50INT, ATUC-50IU, ATDM-0604 and other compatible products. Supplies DC 48V power. Mode switch for selection of remote control via ATUC-50CU/IRCU/IRCUDAN or standalone power control. Half-rack chassis. For wired or wireless systems.
Features
- Allows cable-run extension of discussion/conference systems and mixers equipped with Audio-Technica LINK RJ-45 ports
- With ATUC-50 Digital Discussion System, supports use of up to 100 discussion units per control unit
- Supplies DC 48V power to connected devices, enabling extended cable runs
- LED indicators for power on/off, power supply status, current-overload detection
- Power overload protection: unit cuts power when drawn current is greater than 2.6A
- Includes AT8649 table mount kit and power cable
Specifications
| Discussion Unit | |
|---|---|
| Connections | Outputs: LINK power status Chain: DU port A/B |
| Power Supply | AC 100V-240V 50/60Hz |
| Power Consumption | 15W-160W (MAX) |
| Operating Temperature Range | 0-40℃ |
| Operating Humidity | 25-85% |
