Flexible cable with Foil screen, used for the wiring of Security Alarm Systems, Access Control or other low voltage applications. Will comfortably exceed the performance requirements of BS4737 type 3 and is fully CPR compliant.

• 6 Core Intruder Alarm Cable

• 7 x 0.2 mm strands, TCCA

• Tinned Copper Coated Aluminium & Magnesium cores with high Copper content.

• Insulation, PVC 0.3 mm

• Nylon stripping cord

• Aluminium Foil screen with earth wire

• Outer Sleeve, PVC in white

• Current rating:  1 amp

• CE, RoHS & CPR compliant

• Core colours: Red, Blue, Yellow, Black, Green & White

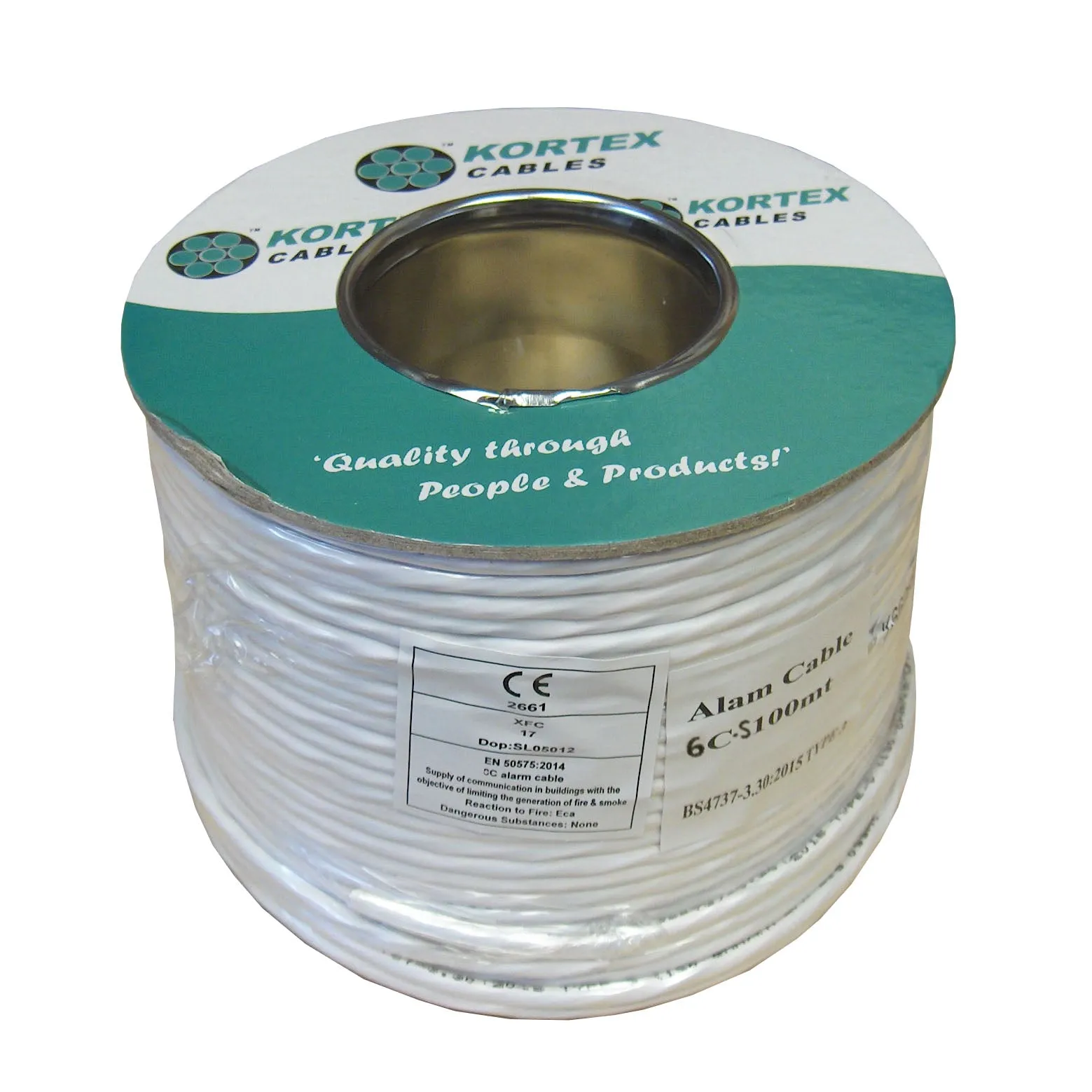

• 100m Reel: Cardboard with metal inner

Application:
Flexible cable used for the wiring of security systems, access
control, burglar alarms and other low voltage applications.

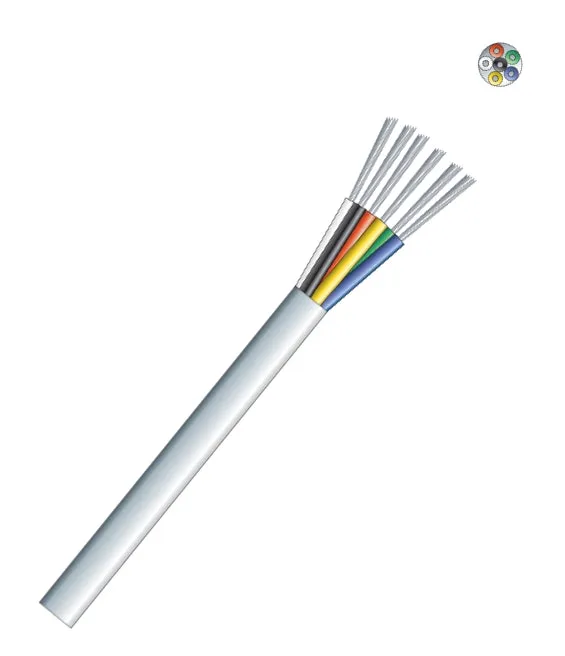

Construction overview:
4,6,8 or 12 core construction with each conductor made up of
7 strands of 0.20 mm Tinned Copper or Copper Clad aluminium
( CCA) with PVC insulation & PVC outer Jacket (optional LSZH) in
White or Dark Brown. Excellent flexibility yet robust with a strong
nylon stripping cord.
